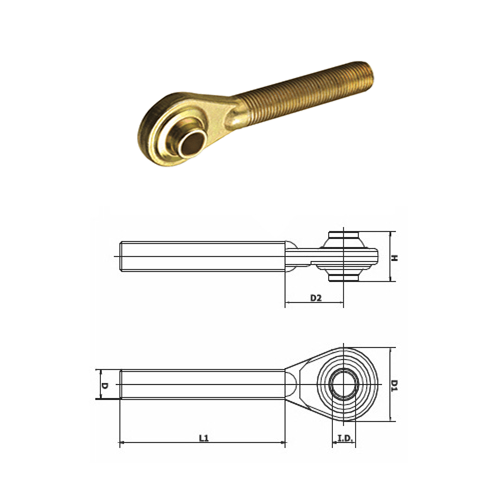

TOP LINK END
| ART. | CAT | I.D. | THREAD D | L1 | D1 | D2 | H |
|---|---|---|---|---|---|---|---|
| ATI-TLE001 | 1 | 16 | 3/4,UNC R | 105 | 47 | 30 | 25.4 |
| ATI-TLE002 | 1 | 16 | 3/4,UNC L | 105 | 47 | 30 | 25.4 |
| ATI-TLE003 | 1 | 19 | 1.1/8,UNC R | 150 | 58 | 53 | 44 |
| ATI-TLE004 | 1 | 19 | 1.1/8,UNC L | 150 | 58 | 53 | 44 |
| ATI-TLE005 | 1 | 25.4 | 1.1/8,UNC R | 180 | 66 | 55 | 51 |
| ATI-TLE006 | 1 | 25.4 | 1.1/8,UNC L | 180 | 66 | 55 | 51 |
| ATI-TLE007 | 1 | 25.4 | 1.1/4,UNC R | 180 | 76 | 62 | 51 |
| ATI-TLE008 | 1 | 25.4 | 1.1/4,UNC L | 180 | 76 | 62 | 51 |
| ATI-TLE009 | 1 | 32 | 1.3/8,UNC R | 155 | 89 | 76 | 51 |
| ATI-TLE010 | 1 | 32 | 1.3/8,UNC L | 155 | 89 | 76 | 51 |
TOP LINK END (METRIC)
| ART. | CAT | I.D. | THREAD D | L1 | D1 | D2 | H |
|---|---|---|---|---|---|---|---|
| ATI-TLE017 | 1 | 19 | M24X2.5R | 115 | 58 | 50 | 44 |
| ATI-TLE018 | 1 | 19 | M24X2.5L | 115 | 58 | 50 | 44 |
| ATI-TLE019 | 1 | 19 | M24X3 R | 115 | 58 | 50 | 44 |
| ATI-TLE020 | 1 | 19 | M24X3 L | 115 | 58 | 50 | 44 |
| ATI-TLE021 | 1 | 19 | M24X3 R | 155 | 62 | 50 | 44 |
| ATI-TLE022 | 1 | 19 | M24X3 L | 155 | 62 | 50 | 44 |
| ATI-TLE023 | 2 | 25.4 | M24X3 R | 165 | 75 | 55 | 51 |
| ATI-TLE024 | 2 | 25.4 | M24X3 L | 165 | 75 | 55 | 51 |
| ATI-TLE025 | 1 | 19 | M27X3 R | 150 | 58 | 50 | 44 |
| ATI-TLE026 | 1 | 19 | M27X3 L | 150 | 58 | 50 | 44 |
| ATI-TLE027 | 2 | 25.4 | M27X3 R | 165 | 66 | 50 | 51 |
| ATI-TLE028 | 2 | 25.4 | M27X3 L | 165 | 66 | 50 | 51 |
| ATI-TLE029 | 2 | 25.4 | M27X3 R | 165 | 75 | 50 | 51 |
| ATI-TLE030 | 2 | 25.4 | M27X3 L | 165 | 75 | 50 | 51 |
| ATI-TLE031 | 1 | 19 | M30X3 R | 155 | 58 | 50 | 44 |
| ATI-TLE032 | 1 | 19 | M30X3 L | 155 | 58 | 50 | 44 |
| ATI-TLE033 | 1 | 19 | M30X3.5 R | 155 | 58 | 50 | 44 |
| ATI-TLE034 | 1 | 19 | M30X3.5 L | 155 | 58 | 50 | 44 |
| ATI-TLE035 | 2 | 25.4 | M30X3 R | 165 | 75 | 55 | 51 |
| ATI-TLE036 | 2 | 25.4 | M30X3 L | 165 | 75 | 55 | 51 |
| ATI-TLE037 | 2 | 25.4 | M30X3.5 R | 165 | 75 | 55 | 51 |
| ATI-TLE038 | 2 | 25.4 | M30X3.5 L | 165 | 75 | 55 | 51 |
| ATI-TLE039 | 2 | 25.4 | M36X3 R | 165 | 80 | 55 | 51 |
| ATI-TLE040 | 2 | 25.4 | M36X3 L | 165 | 80 | 55 | 51 |
| ATI-TLE041 | 2 | 25.4 | M36X3 R | 175 | 80 | 55 | 51 |
| ATI-TLE042 | 2 | 25.4 | M36X3 L | 175 | 80 | 55 | 51 |
| ATI-TLE043 | 2 | 25.4 | M36X3 R | 200 | 96 | 70 | 51 |
| ATI-TLE044 | 2 | 25.4 | M36X3 L | 200 | 96 | 70 | 51 |
| ATI-TLE045 | 3 | 32 | M36X3 R | 200 | 96 | 70 | 51 |
| ATI-TLE046 | 3 | 32 | M36X3 L | 200 | 96 | 70 | 51 |
