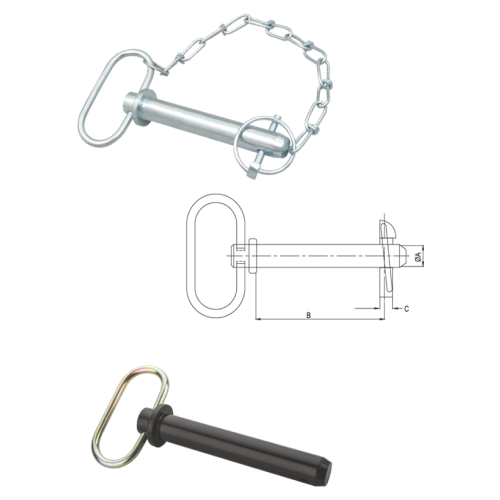

HITCH PIN WITH LINCH PIN & CHAIN
| CODE | A | B | C |
|---|---|---|---|
| HPWLP12092 | 12.7 | 92.5 | 6.5 |
| HPWLP12111 | 12.7 | 111 | 6.5 |
| HPWLP12162 | 12.7 | 162 | 6.5 |
| HPWLP16165 | 15.9 | 165 | 6.5 |
| HPWLP19102 | 19 | 102 | 6.5 |
| HPWLP19112 | 19 | 112 | 6.5 |
| HPWLP19165 | 19 | 165 | 6.5 |
| HPWLP22112 | 22 | 112 | 6.5 |
| HPWLP22125 | 22 | 125 | 6.5 |
| HPWLP22165 | 22 | 165 | 6.5 |
| HPWLP25110 | 25 | 110 | 6.5 |
| HPWLP25165 | 25 | 165 | 6.5 |
| HPWLP25176 | 25 | 176 | 6.5 |
| HPWLP25189 | 25 | 189 | 6.5 |
| HPWLP28120 | 28 | 120 | 6.5 |
| HPWLP28165 | 28 | 165 | 6.5 |
| HPWLP28189 | 28 | 189 | 6.5 |
| HPWLP30165 | 30 | 165 | 12 |
| HPWLP30183 | 30 | 183 | 12 |
| HPWLP 32165 | 31.75 | 165 | 12 |
| HPWLP 32190 | 31.75 | 190 | 12 |
| HPWLP 35190 | 35 | 190 | 12 |
| HPWLP 36190 | 36 | 190 | 12 |
| HPWLP 37165 | 37 | 165 | 12 |
| HPWLP 38189 | 38 | 189 | 12 |

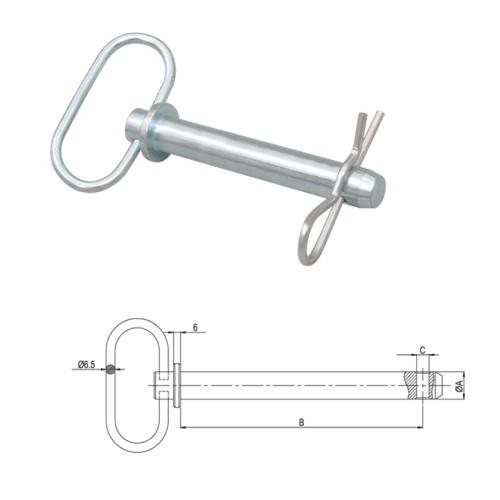

HITCH PIN WITH HAIR PIN-(OVAL HANDLE)
| CODE | A | B | C |
|---|---|---|---|
| ATI-HPWHP12092 | 12.7 | 92.5 | 4 |
| ATI-HPWHP12111 | 12.7 | 111 | 4 |
| ATI-HPWHP12162 | 12.7 | 162 | 4 |
| ATI-HPWHP16102 | 16 | 102 | 4 |
| ATI-HPWHP16110 | 16 | 110 | 4 |
| ATI-HPWHP16162 | 16 | 162 | 4 |
| ATI-HPWHP19102 | 19 | 102 | 6.5 |
| ATI-HPWHP19108 | 19 | 108 | 6.5 |
| ATI-HPWHP19112 | 19 | 112 | 6.5 |
| ATI-HPWHP19157 | 19 | 157 | 6.5 |
| ATI-HPWHP19165 | 19 | 165 | 6.5 |
| ATI-HPWHP22112 | 22 | 112 | 6.5 |
| ATI-HPWHP22125 | 22 | 125 | 6.5 |
| ATI-HPWHP22157 | 22 | 157 | 6.5 |
| ATI-HPWHP22165 | 22 | 165 | 6.5 |
| ATI-HPWHP25110 | 25 | 110 | 6.5 |
| ATI-HPWHP25157 | 25 | 157 | 6.5 |
| ATI-HPWHP25165 | 25 | 165 | 6.5 |
| ATI-HPWHP25181 | 25 | 181 | 6.5 |
| ATI-HPWHP25189 | 25 | 189 | 6.5 |
| ATI-HPWHP25225 | 25 | 225 | 6.5 |
| ATI-HPWHP28120 | 28 | 120 | 6.5 |
| ATI-HPWHP28165 | 28 | 165 | 6.5 |
| ATI-HPWHP28189 | 28 | 189 | 6.5 |
| ATI-HPWHP30165 | 30 | 165 | 6.5 |
| ATI-HPWHP30183 | 30 | 183 | 6.5 |
| ATI-HPWHP32135 | 32 | 135 | 6.5 |
| ATI-HPWHP32189 | 32 | 189 | 6.5 |

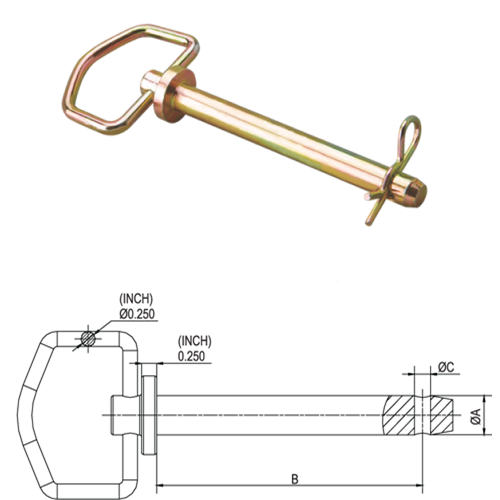

HITCH PIN (TEMPLE HANDLE)
| CODE | A | B | C (INCH) |
|---|---|---|---|
| ATI-HPSWHP71010 | 3/8, | 4-1/4, | 0.157 |
| ATI-HPSWHP71011 | 1/2, | 4-1/4, | 0.265 |
| ATI-HPSWHP71012 | 1/2, | 6-1/4, | 0.265 |
| ATI-HPSWHP71021 | 5/8, | 4-1/4, | 0.265 |
| ATI-HPSWHP71022 | 5/8, | 6-1/4, | 0.265 |
| ATI-HPSWHP71031 | 3/4, | 4-1/4, | 0.265 |
| ATI-HPSWHP71032 | 3/4, | 6-1/4, | 0.265 |
| ATI-HPSWHP71041 | 7/8, | 4-1/4, | 0.265 |
| ATI-HPSWHP71042 | 7/8, | 6-1/4, | 0.265 |
| ATI-HPSWHP71051 | 1, | 4-1/4, | 0.265 |
| ATI-HPSWHP71052 | 1, | 6-1/4, | 0.265 |
| ATI-HPSWHP71062 | 1-1/8, | 6-1/4, | 0.265 |
| ATI-HPSWHP71072 | 1-1/4, | 6-1/4, | 0.265 |
