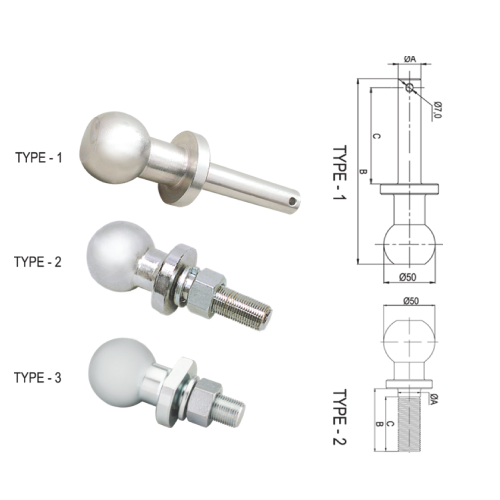

HITCH BALL / HITCH BALL LONG
| CODE | A | B | C | THREAD | TYPE |
|---|---|---|---|---|---|
| HB 22L | 22 | 189 | 98 | 0 | 1 |
| HB 16 | 16 | 50 | 44 | 5/8” UNF | 2 |
| HB19 S | 19 | 50 | 44 | 3/4”UNF | 2 |
| HB 19 | 19 | 70 | 57 | 3/4”UNF | 2 |
| HB 22M | 22 | 70 | 57 | M22xX1.5 | 2 |
| HB 22 | 22 | 70 | 57 | 7/8, UNF | 2 |
| HB 25 | 25.4 | 70 | 57 | 1”UNF | 2 |
| HB 22 WC | 22 | 70 | 57 | 7/8, UNF | 3 |

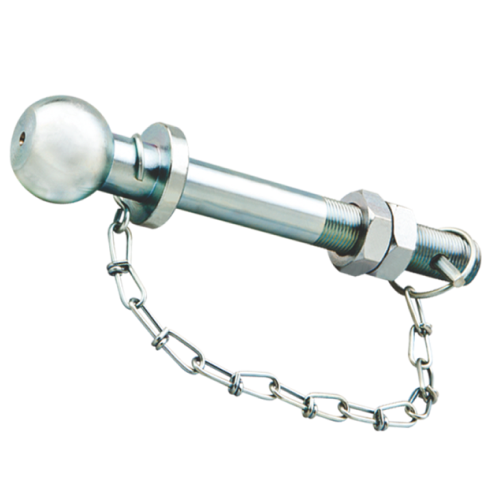

HITCH BALL WITH CHAIN
| CODE | A | B | C | D | E | THREAD |
|---|---|---|---|---|---|---|
| ATIHBC-162 | 22 | 190 | 102 | 162 | 50 | 7/8” |
| ATIHBC-162 | 254 | 190 | 102 | 162 | 50 | 1” |
| ATIHBC-168 | 31.5 | 190 | 100 | 168 | 50 | 1-1/4,UNF |
