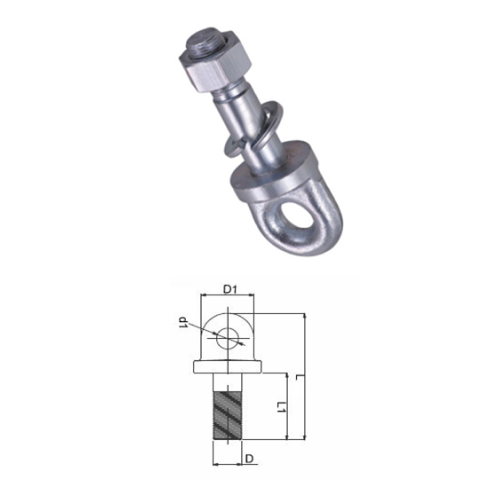

EYE END
| ART. | D | L | DIA-d | D1 | L1 |
|---|---|---|---|---|---|
| ATI-EE 16 | M16X1.5 | 80 | 15 | 36 | 43 |
| ATI-EE 18 | M18X1.5 | 80 | 15 | 36 | 43 |
| ATI-EE 20 | M20X2.5 | 100 | 18 | 40 | 60 |
| ATI-EE 20A | M20X2.5 | 125 | 20 | 53 | 65 |
| ATI-EE 24 | M24X2 | 125 | 24 | 53 | 65 |
EYE END (Type B)
| ART. | D | L | DIA-d | D1 | L1 |
|---|---|---|---|---|---|
| ATI-EE 20B | M20X2.5 | 125 | 20 | 42 | 65 |
| ATI-EE 24B | M24X2 | 125 | 24 | 42 | 65 |
